技术参数: 额定电流: 1.0 A 接触电阻: 30mΩ Max 绝缘电阻: 1000MΩ Min 耐压值 : 300V AC/minute 工作温度: -40℃ to +105℃

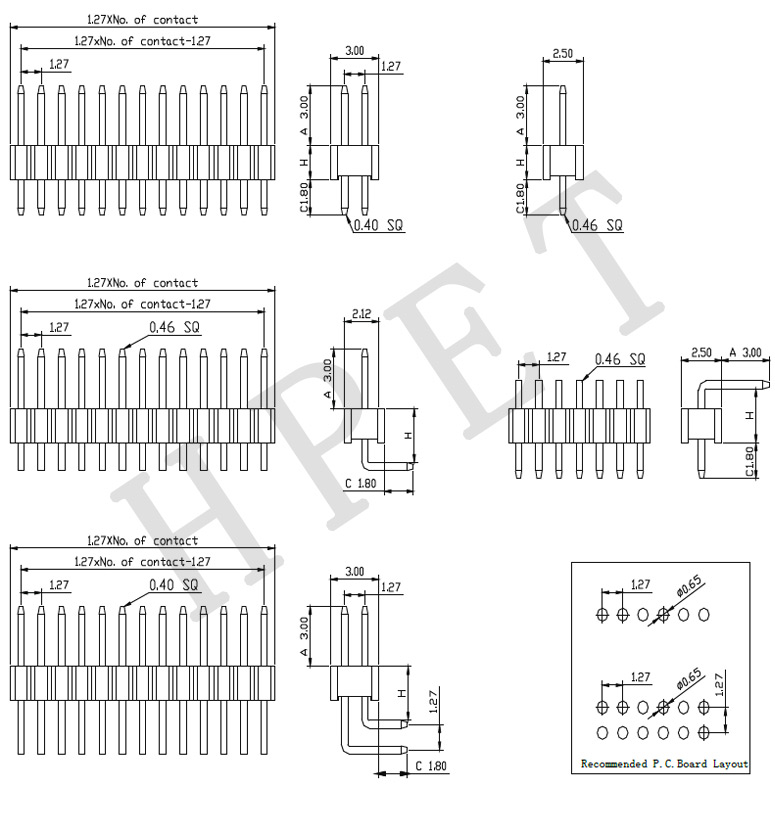

1.27mm单塑排针（单，双排）；直插、90度 SPECIFICATIONS(技术参数): Current Rating(额定电流): 1.0 A Contact Resistance(接触电阻): 30mΩ Max Insulation Resistance(绝缘电阻): 1000MΩ Min Withstand Voltage(耐压值): 300V AC/minute Operation Temperature(工作温度): -40°C to +105°C
MATERIALS(材质): Contact Material(接触件材质): Copper Alloy Contact Plating(接触件电镀): Gold or Tin over 50u' Ni
>
